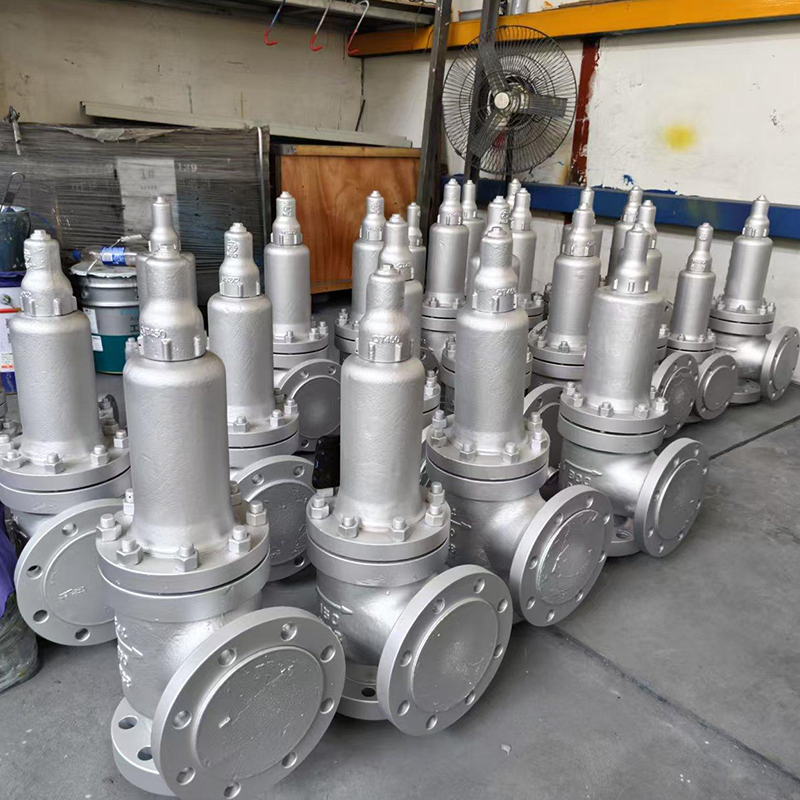

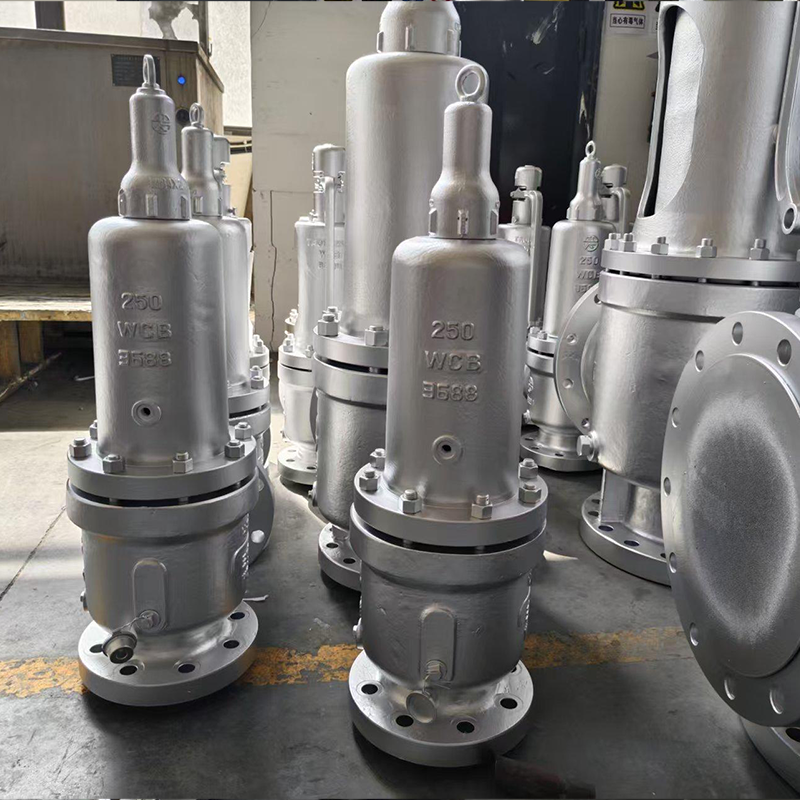

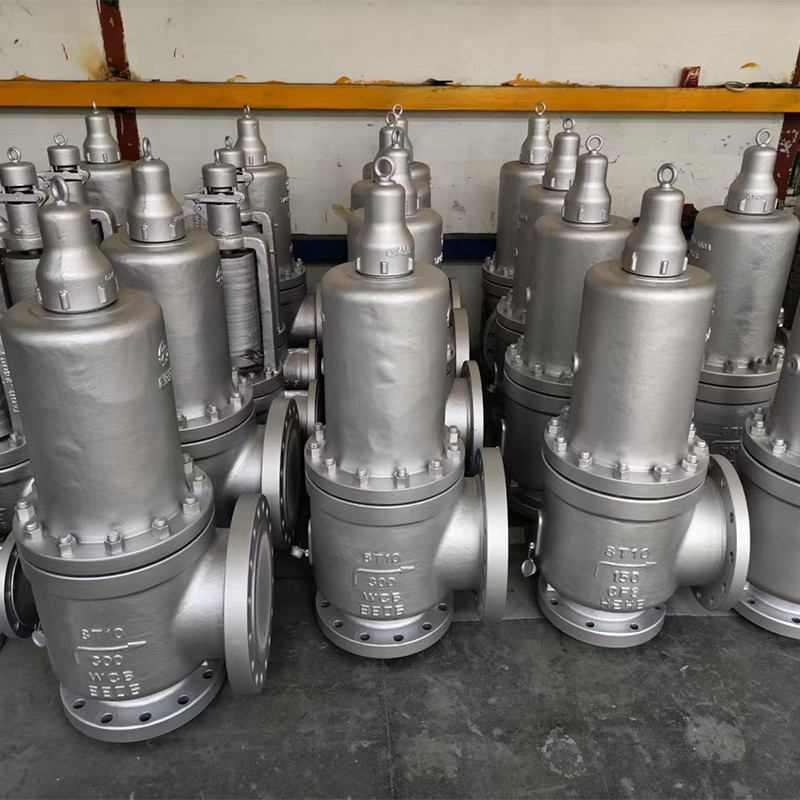

As a key pressure safety equipment, our large Safety Valve is specially designed for high-pressure and high-temperature industrial scenarios such as petrochemical, electric power, natural gas pipelines, boiler systems, etc., to ensure that the equipment can be quickly discharged under overpressure conditions to ensure personnel safety and system stability.
Key Features & Benefits:
High-pressure and high-flow design
Diameter range: DN50~DN400 (customization supported), suitable for ultra-high pressure conditions (Class 150~2500).
Large-displacement pressure relief capacity, response time <0.1 second, in line with international standards such as ASME and API 526.
Adaptability to harsh working conditions
Optional materials: carbon steel, stainless steel (304/316), alloy steel, corrosion resistance, high temperature resistance (up to 800℃).
Built-in bellows structure (optional): prevent back pressure and extend valve life.
Intelligence and compliance
Optional sensor interface, real-time monitoring of valve position status, support for remote control (IoT integration).
Complete certifications: TSG, CE, PED, API 527, to ensure global project access.
Typical Applications：
Petroleum refining: overpressure protection of reactors and distillation towers.
LNG storage and transportation: safe discharge of liquefied natural gas pipelines and storage tanks.
Power industry: boiler main steam system, nuclear power secondary circuit.
Shipbuilding: engine room and fuel tank pressure control.
Customized service：
Support customers to customize valve body material, spring pressure range, connection method (flange/welding), sealing form (metal soft seal), etc., and provide technical support such as calculation selection and working condition simulation.
